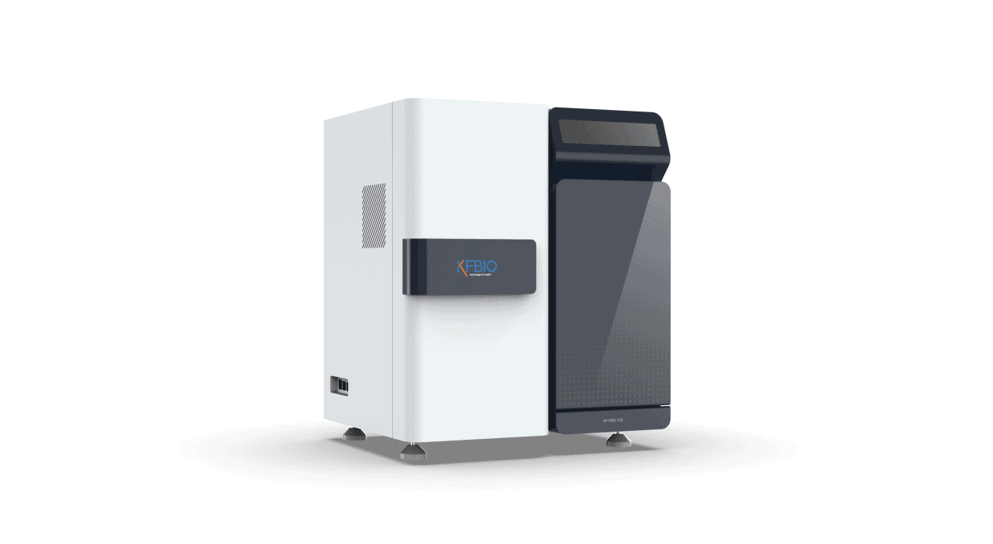

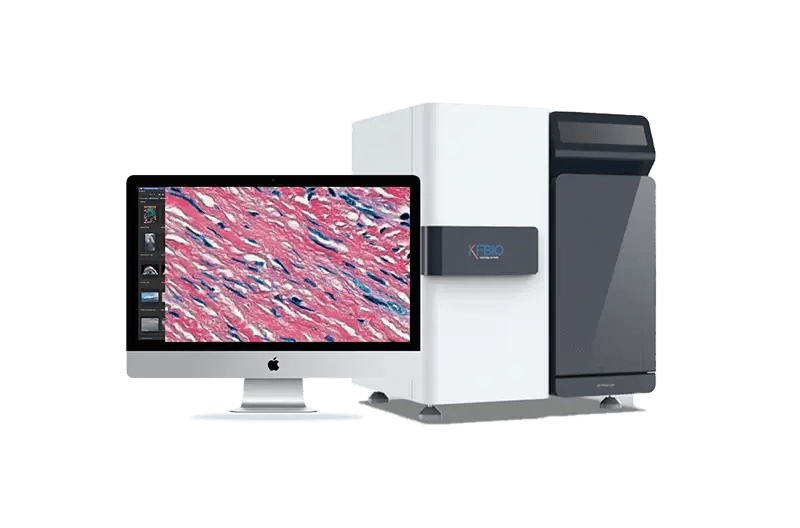

The KF-PRO-120 from KFBIO is a digital pathology scanner designed for medium throughput requirements and is ideal for clinical diagnostics, research and telepathology. With a capacity of up to 120 slides per scan, it offers an efficient solution for laboratories with medium sample volumes. See for yourself: Here you will find first insights into our digital scans.
High throughput: Automatic scanning of up to 120 slides in one pass - ideal for laboratories with large sample volumes.
Fast scanning speed: High-performance line scan technology - under 15 seconds at 20×, under 40 seconds at 40× for typical 15×15 mm specimens.
Excellent image quality: Olympus Super Apochromat objective with high numerical aperture (NA 0.8), precise imaging with 0.125 μm/pixel at 40×.
Maximum precision: Magnetic levitation technology enables extremely quiet, precise and wear-free operation.
Intelligent automation: Integrated recognition of barcodes, QR codes and 2D codes for an end-to-end workflow.
Z-stack functionality: support for multiple focus planes (e.g. for thicker fabrics or special stains).

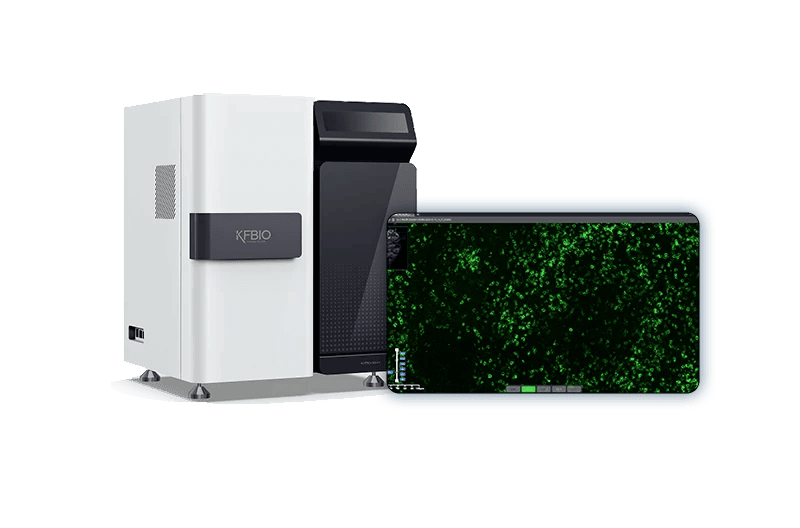

Fluorescence-capable (optional): Expandable with LED-based fluorescence modules and multiband filters.
Color reliability: Color matching via K-SCP process for consistent display and evaluation.
Versatile export formats: Supports standard formats such as TIFF, JPEG, SVS, DICOM - compatible with common analysis platforms.
User-friendly: Fully automated process with intelligent error correction and very high scan success rate (over 99.8 %).
Slide capacity: up to 120 Scan speed: ≤ 15 seconds (20×), ≤ 40 seconds (40×) Resolution: 0.25 µm/pixel (20×), 0.125 µm/pixel (40×) Lens: Olympus Super Apochromat, NA 0.8 Camera: Dalsa Tri-Linear CCD Scanning technology: Linear scan with magnetic levitation unit Positioning accuracy: 20-50 nm Z-Stack: Yes, multi-layer (e.g. up to 10 layers) Fluorescence capability: Optionally with LED light source and up to 6 filter channels Light source: LED Supported image formats: KFB, SVS, TIFF, JPEG, JPEG2000, BMP Scan success rate: approx. 99.85 % Color management: K-SCP system for true color display Barcode/QR code recognition: Integrated (1D and 2D codes) Dimensions (L × W × H): approx. 583 × 503 × 669 mm Weight: approx. 70 kg Power supply: 220 V, 50/60 Hz Network: Ethernet (RJ45), optional WLAN Software: KFscan / KFviewer (Windows 10-based)
